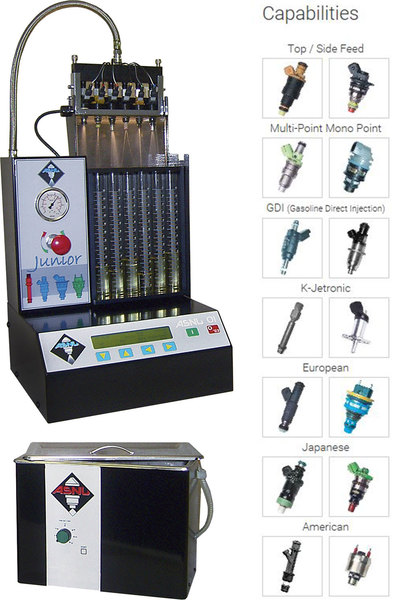

Petrol injector and diagnostic testing and servicing system capable of testing standard manifold port, top fee and side feed injectors.

Technical Specifications

Input/Output Voltage:   96v – 265v AC / 13.8v DC
Fuel Pressure:    0 – 10 bar
Fuel Pump:     Magnetic overload release.
Casing Coating:   Nylon
ASNU Junior Carton:    50 X 52 X 72 cm
ASNU Junior Bench Size:     50 X 52 X 72 cm
Packed Weight / Un-Packed Weight:    24 klg / 15 klg

Features

• Backlit Viewing Window
• Digital Operational Display
• Membrane Key Pad
• Injector Shot Counter Display
• Injector Shot Timer Display
• Duty Cycle Display
• Up to 10,000 RPM
• High Performance Pump Upgrade Option
• Ultrasonic Injector Cleaning Cycle
• Manual & Automatic Cleaning Cycles – 3 options
• Stand alone Ultrasonic Cleaning Bath – available with our without bath
• 2 Ultrasonic Bath Options
• Suitable for Motorcycle Injectors
• Suitable for Gasoline Direct Injector (GDI) (optional equipment required)
• Suitable for Injected Marine Engines (optional equipment required)
• Suitable for LPG Injection (optional equipment required)
• Tests up to 6 Injectors at one time
• Simulates on-car Spray Patterns & Flow Rates
• Injector Leak Down Test
• 12 Language Selection Screen
• LBS per Hour to Millilitres Calculator
• Easy to Read LCD Screen
